Product Specifications for Product 313 GC
Engine
● Net power - ISO9249 70.6 kw
● Engine Model Cat C3.6
● Engine Power - IsO1439674.4 kW
● Bore 98 mm
● Stroke 120 mm
● Displacement 3.61
Hydraulic system
● Main System - Maximum Flow 247 L/min (65 gal/min)
● Maximum pressure - device 35000 kPa
● Maximum pressure - travel 35000 kPa
Slewing mechanism
● Rotation speed 11.5 r/min
● Maximum swing torque 43 kN m
Weight
● Working weight 12400 kg
Maintenance and filling capacity
● Fuel tank capacity 2371
● Cooling system 11 1
● Engine oil 11 1
● Final Drives - 31 each
● Hydraulic System - Including Tank 1451
● Hydraulic tank 771
Size
● Boom reach 4.65 m (15'3")
● Stick Reach 2.5 m (8'2")
● Bucket GD 0.53 m³(0.68d³)
● Shipping Height - Cab Top 2780 mm
● Armrest height 2820 mm
● Shipping length 7630 mm
● Tail turning radius 2160 mm
● Counterweight Clearance 895 mm
● Ground clearance 425 mm
● Track length 3490 mm
● Track roller center spacing 2780 mm
● Track gauge 1990 mm
● Transport width 2490 mm
Working range and digging force
● Maximum excavation depth 5570 mm
● Boom reach 4.65 m (15'3")
● Stick Reach 2.5 m (8'2")
● Bucket GD 0.53 m³(0.68 d³)
● Maximum reach on the ground 8210 mm
● Maximum cut height 8530 mm
● Maximum loading height 6070 mm
● Minimum loading height 1980 mm
● Maximum depth of cut 5370 mm for 2440 mm (8 ft) flat bottom
● Maximum vertical wall excavation depth 5040 mm
● Bucket Digging Force - IsO 95.7 kN
● Stick Digging Force - Iso 68.2 kN

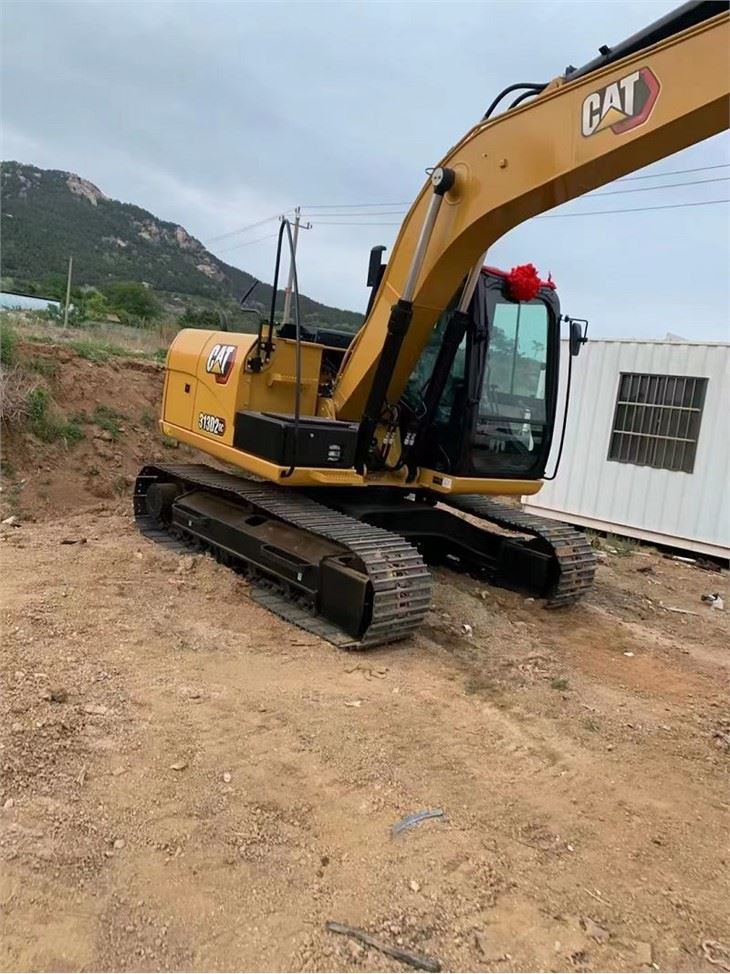

The CAT 313GC Excavator is a powerful and versatile piece of construction equipment that is designed to deliver exceptional performance and efficiency in a variety of applications. This excavator boasts a number of impressive features and capabilities that make it an ideal choice for a wide range of industries, including mining, construction, and forestry.
One of the key advantages of the CAT 313GC Excavator is its exceptional digging and lifting capabilities. With a maximum digging depth of 4.2 meters and a maximum reach of 6.5 meters, this excavator is capable of quickly and easily excavating large volumes of soil and debris. Additionally, its powerful hydraulic system enables it to handle heavy loads with ease, making it an ideal choice for excavation projects of all sizes.
Another key advantage of the CAT 313GC Excavator is its fuel-efficiency. It is equipped with a powerful and reliable engine that is designed to deliver maximum power while consuming minimal fuel. This not only helps to reduce operating costs but also helps to reduce carbon emissions.
The CAT 313GC Excavator is also designed with the operator's comfort and safety in mind. It comes equipped with a spacious and comfortable cab that is designed to minimize operator fatigue, making it easier to work long hours on the job site. Additionally, its advanced safety features, such as the rearview camera and alert system, help to enhance operator safety and prevent accidents on the job site.
When using the CAT 313GC Excavator, there are several important usage considerations to keep in mind. For example, it is important to ensure that the excavator is properly maintained and serviced to ensure optimal performance and longevity. It is also important to be aware of the excavator's weight limits and to avoid overloading it while working on the job site.
Overall, the CAT 313GC Excavator is an outstanding piece of equipment that offers exceptional performance, efficiency, and versatility. Whether you are working on a large construction project, excavating a mine or quarry, or performing forestry operations, the CAT313GC Excavator is an excellent choice that will help you to get the job done quickly and efficiently.
